Blocking a Tsunami
Prevention of Flooding in Buildings on the Site
Implementing a range of measures, such as strengthening watertightness and pressure-resistance of reactor building external walls
![Tsunami protection door, watertight door and automatic closing gates(image)](/english/energy/hamaoka/provision/tsunami/building/img/img_01.gif)

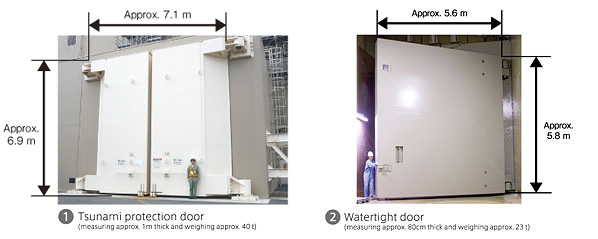

Strengthening watertightness and pressure-resistance of reactor building external walls
To protect reactor buildings from flooding, the pressure resistance and watertightness of the buildings are being strengthened by the replacement of waterproof doors with watertight doors and new tsunami protection doors.
![Tsunami protection door(photo),Watertight door(photo)](/english/energy/hamaoka/provision/tsunami/building/img/img_02.jpg)

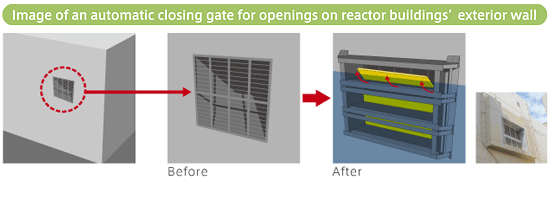

Installing automatic closing gates to openings on reactor buildings' exterior walls (Units 3 and 4)
Automatic closing gates are installed on openings of reactor buildings' exterior walls up to the level of the buildings' middle roof (approx. 20 m above sea level).
![Image of an automatic closing gate for openings on reactor buildings' exterior wall](/english/energy/hamaoka/provision/tsunami/building/img/img_03.gif)

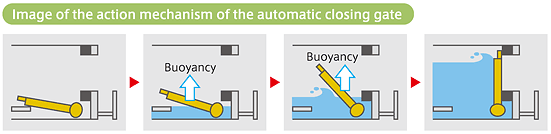

![Image of the action mechanism of the automatic closing gate](/english/energy/hamaoka/provision/tsunami/building/img/img_04.gif)
![Protection from internal flooding within the reactor building(note)](/english/energy/hamaoka/provision/tsunami/building/img/img_05.gif)
