Blocking a Tsunami

Prevention of Flooding on the Station Site

Various countermeasures are implemented including the installation of the tsunami protection wall.

Tsunami protection wall and overflow protection wall(image)

1Installing the tsunami protection wall and raising of the eastern and western cement-mixed soil embankments

A tsunami protection wall 22 m above sea level (total length approx. 1.6 km), and cement-mixed soil embankments at each end of the wall, 22 -24 m above sea level is being constructed.

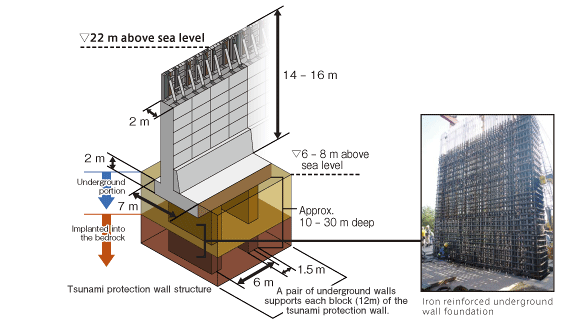

Tsunami protection wall structure(image)
Diagram of the tsunami protection wall and cement-mixed soil embankments(image)
Tsunami protection wall(photo),Cement-mixed soil embankment(photo)

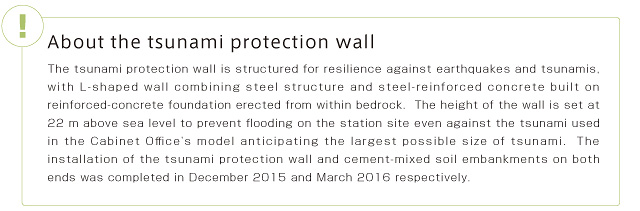

About the tsunami protection wall(note)

2Installation of overflow prevention walls

We are placing overflow prevention walls, approx. 4 m high, around water intake ponds in order to prevent the inflow of seawater from water intake channels that connect ponds with the ocean through tunnels.

Installation image of the overflow prevention wall
